Description
4K 30Hz 130ft | 1080p 230ft | IR Extension | Power over Cable

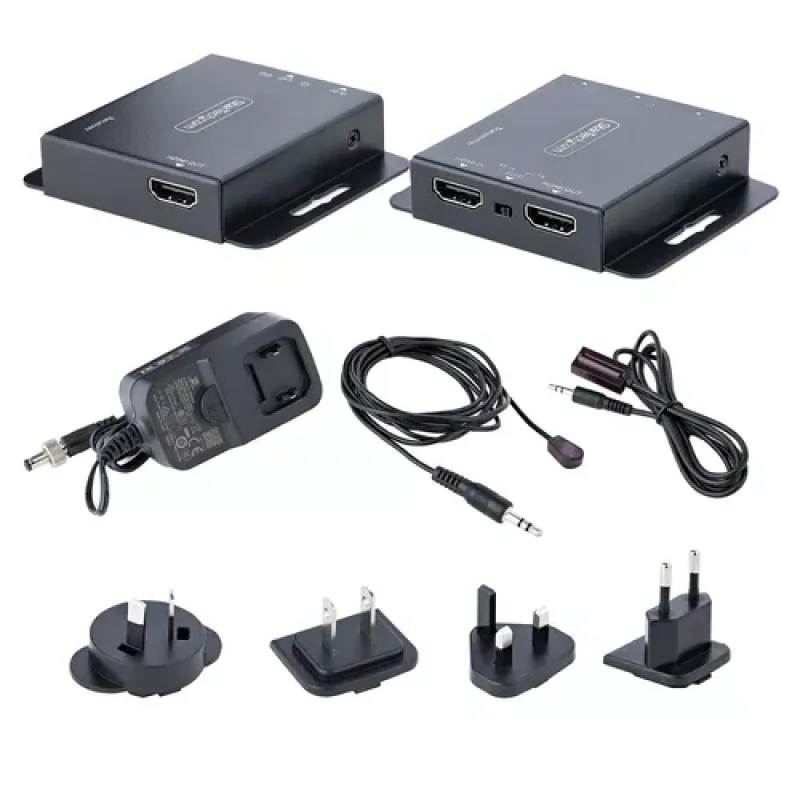

This HDMI® Extender over CAT6 lets you transmit a 4K 30Hz HDMI® audio video signal up to 130ft (40m), or 230ft (70m) for 1080p resolutions. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.
4K Picture Quality
This HDMI extender supports 7.1ch audio and resolutions of up to 4K at 30Hz (3840 x 2160) over a single CAT6/5e cable. The UHD HDMI Extender supports HDMI 1.4 and 4:4:4 chroma subsampling, which ensures a crystal-clear picture.
Simplify your setup
With support for Power over Cable (PoC), only one power, connected to the transmitter, is required to power both units of the transmitter and receiver kit. IR extension, using the included IR Blaster and Receiver, makes controlling a source device from a remote location easy.
Easy Installation
The 4K HDMI Extender over Ethernet cable has an HDMI output on the transmitter unit allowing the solution to be cascaded to other video extenders or for use to a local display. Plug-and-play installation with no additional software or drivers required. The metal housing and built-on mounting brackets allow for professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.
EXTEND-HDMI-4K40C6P1 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Specification
Audio
Audio output channels
7.1 channels
Design
LED indicators
Link, Power
Product colour
Black
Rack mounting
No
Display
Maximum refresh rate
60 Hz
Features
Bandwidth
10.2 Gbit/s
Daisy chain
Material
Metal
Maximum resolution
3840 x 2160 pixels
Type
AV transmitter & receiver
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case height
370 mm
Master (outer) case length
420 mm
Master (outer) case width
410 mm
Products per master (outer) case
30 pc(s)
Network
Cable types supported
Cat5e, Cat6
Operational conditions
Operating relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Packaging content
AC adapter included
IR blaster included
IR receiver included
Packaging data
Package depth
116 mm
Package height
77 mm
Package weight
500 g
Package width
200 mm
Performance
Maximum transfer distance
70 m
Operating voltage
12 V
Ports & interfaces
Connectivity technology
Wired
DC-in jack
HDCP
HDCP version
1.4
HDMI in
1
Number of HDMI outputs
2
Remote (IR) input
1
Remote (IR) output
1
RJ-45 input ports
1
RJ-45 output ports
1
Power
AC input voltage
100 - 240 V
External power adapter
Input current
0.3 A
Output current
1 A
Power consumption (typical)
0.1 W
Power plug type
Type M
Technical details
Compliance certificates
CE, RoHS
Weight & dimensions
Depth
57 mm
Height
17 mm
Weight
130 g
Width
69 mm
