Description

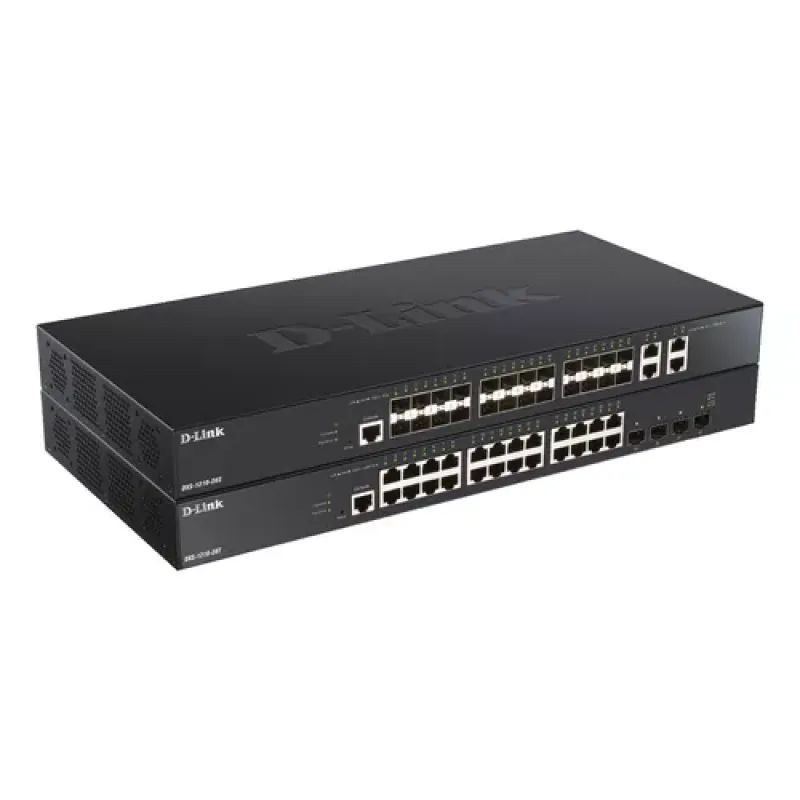

The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Specification
Data transmission
Jumbo frames
9000
Jumbo frames support
MAC address table
32000 entries
Store-and-forward
Switching capacity
560 Gbit/s
Throughput
416.64 Mpps
Design
Form factor
1U
LED indicators
Activity, Link, Speed
Number of fans
2 fan(s)
Product colour
Black
Rack mounting
Features
Certification
CE Class A
FCC Class A
VCCI Class A
IC
BSMI
Logistics data
Harmonized System (HS) code
85176990
Management features
Quality of Service (QoS) support
Switch layer
L2/L3
Switch type
Managed
Web-based management
Network
10G support
Auto MDI/MDI-X
Cable types supported
Cat6, Cat6a, Cat7
Flow control support
Link aggregation
Networking standards
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Number of VLANs
4094
Port mirroring
Spanning tree protocol
VLAN support
Operational conditions
Operating relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Storage relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-20 - 70 °C
Ports & interfaces
10G Ethernet (copper) ports quantity
4
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Console port
RJ-45
SFP+ module slots quantity
24
Power
AC input voltage
100 - 240 V
Power consumption (max)
85.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Protocols
GARP VLAN Registration Protocol (GVRP)
Management protocols
SNMP v1/v2c/v3
Security
Access Control List (ACL)
Access Control List (ACL) rules
256
IGMP snooping
Weight & dimensions
Depth
209.5 mm
Height
44 mm
Weight
3.27 kg
Width
441 mm
