Description
Expand your network connectivity with this rugged unmanaged 10/100Mbps switch

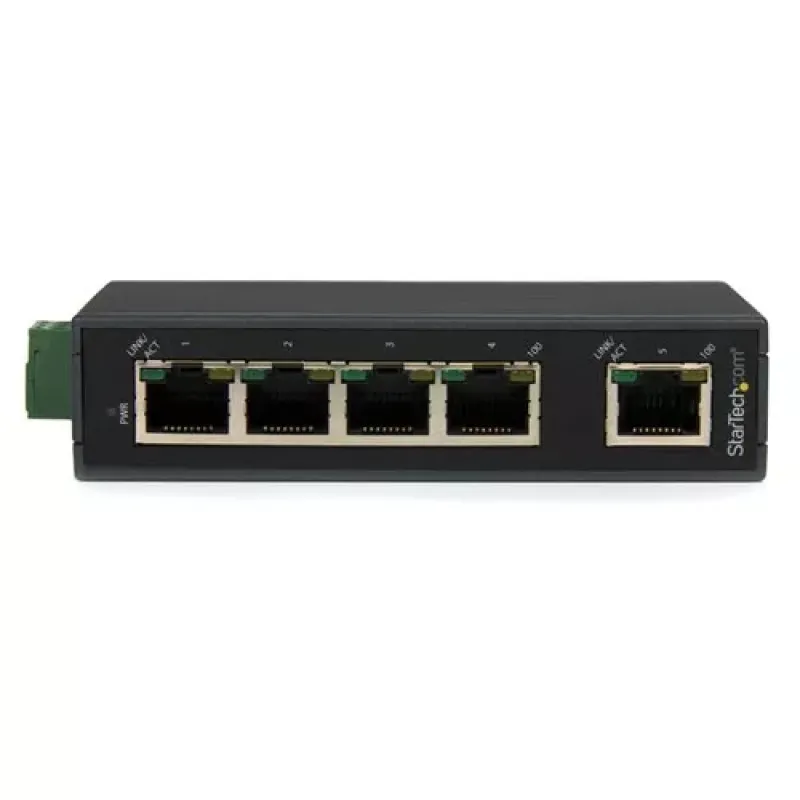

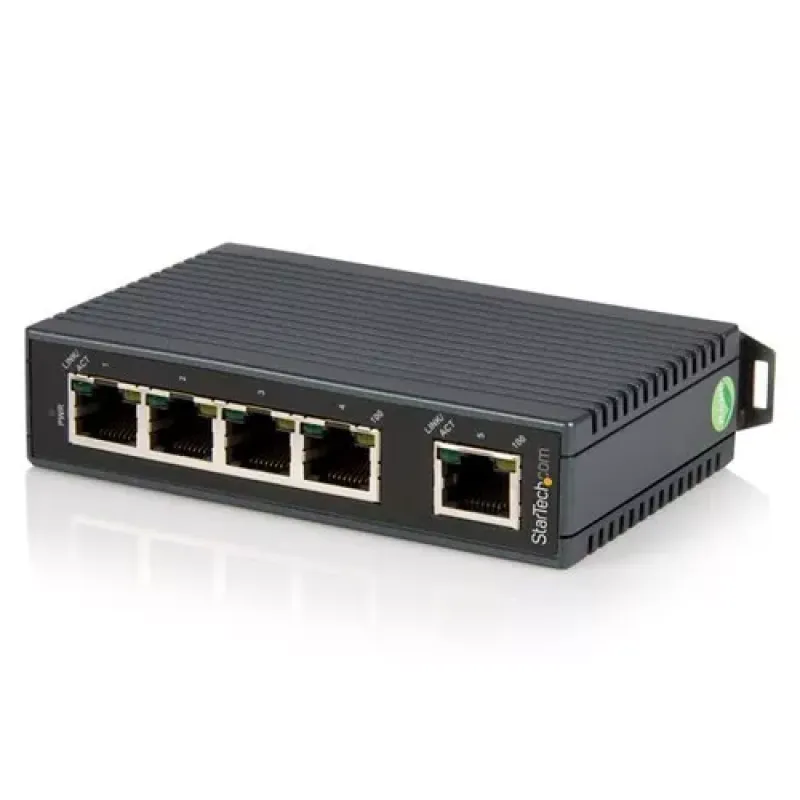

This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.
Conquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
Get up and running in no time

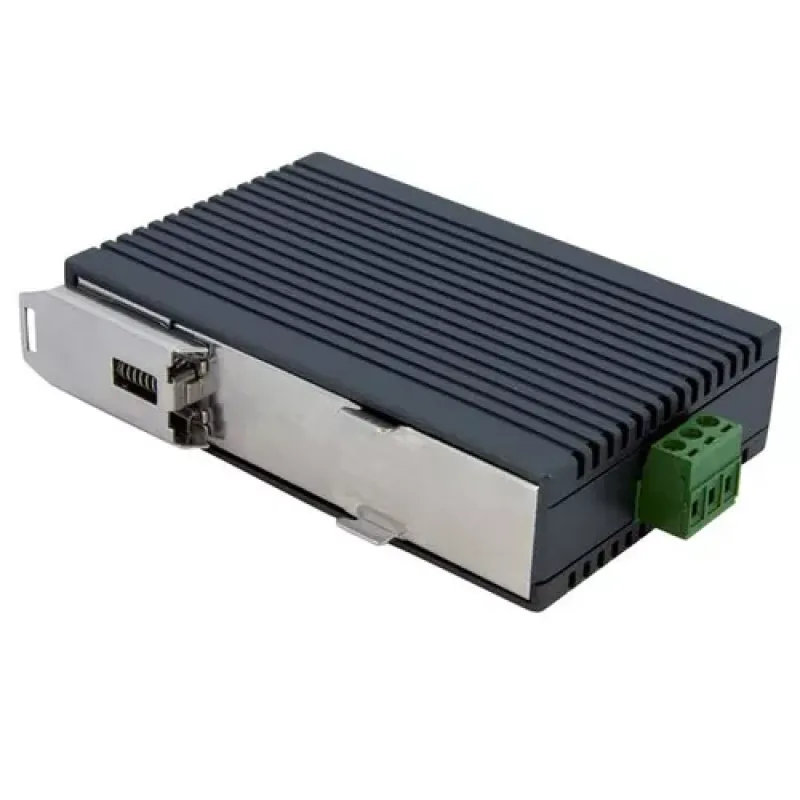

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch
- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket
Specification
Data transmission
Jumbo frames support
No
Store-and-forward
Design
LED indicators
Activity, Link, Power
Product colour
Black
Rack mounting
Regulatory Approvals
EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea
Features
Certification
CE, FCC
Full duplex
Maximum data transfer rate
200 Mbit/s
Logistics data
Harmonized System (HS) code
85176990
Management features
Quality of Service (QoS) support
Switch type
Unmanaged
Network
10G support
No
Auto MDI/MDI-X
Auto-negotiation
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-25 - 85 °C
Packaging data
Package depth
198 mm
Package height
79 mm
Package weight
312 g
Package width
178 mm
Terminal block included
Performance
Buffer size
56 KB
Housing material
Plastic
International Protection (IP) code
IP30
Maximum cable length
100 m
Mean time between failures (MTBF)
1179133 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Power
Input voltage
12 - 48 V
Power consumption (max)
2.12 W
Weight & dimensions
Depth
70 mm
Height
110 mm
Weight
148 g
Width
25 mm
