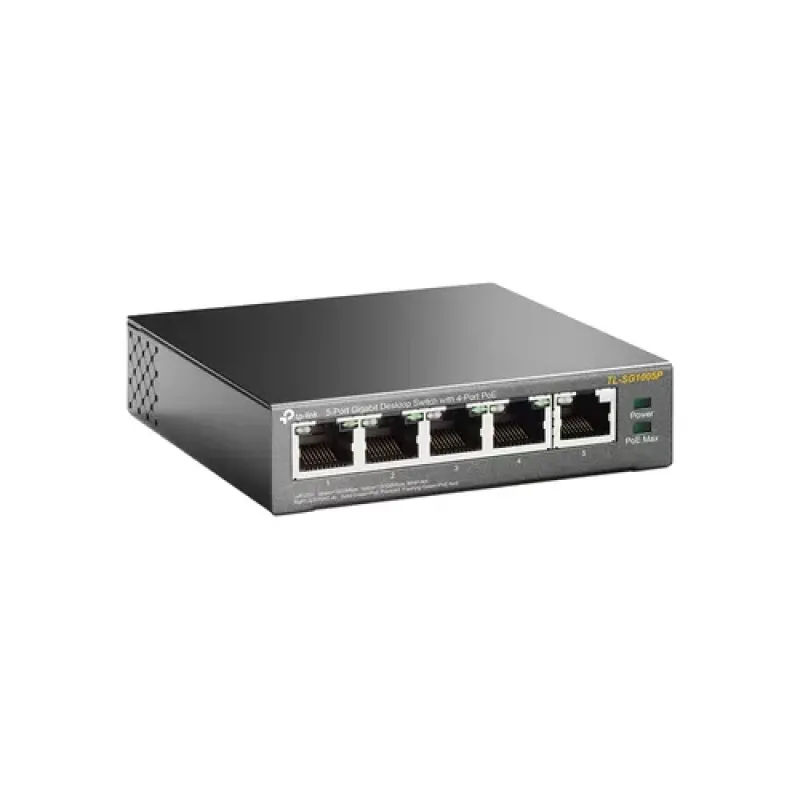

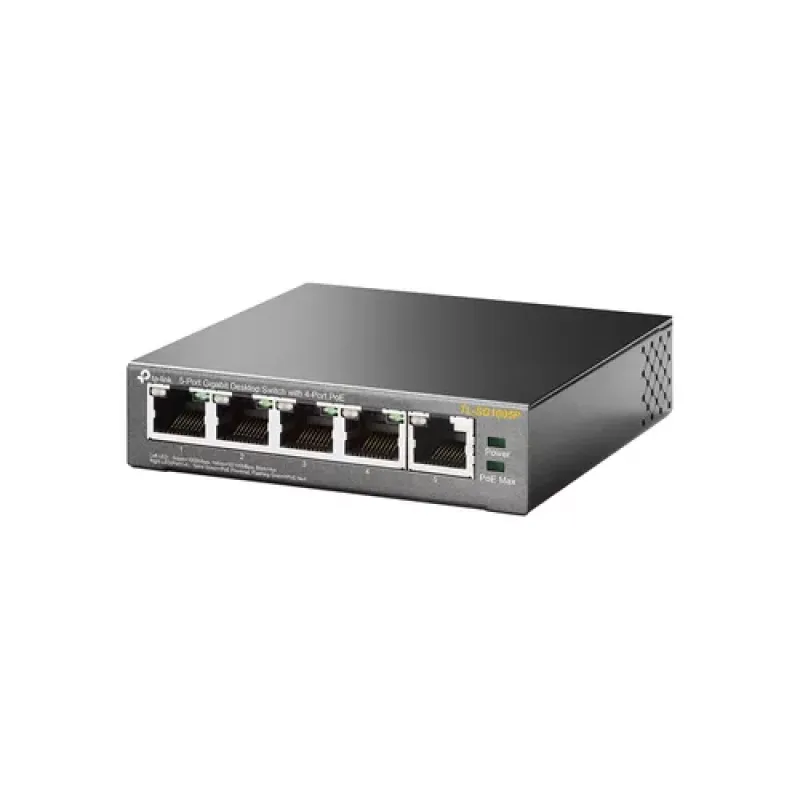

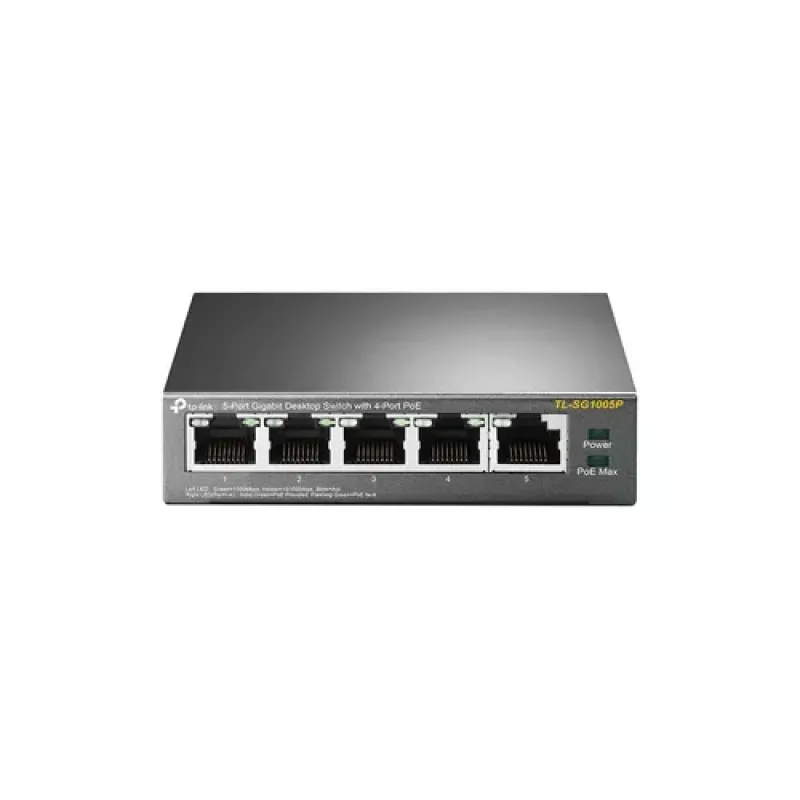

TP-Link TL-SG1005P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand:
TP-Link
55.99 €
In Stock
Description
PoE Switches for Your Ultra Convenience5-Port Gigabit Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Specification
Data transmission
Forwarding rate
7.44 Mpps
MAC address table
2000 entries
Store-and-forward
Switching capacity
10 Gbit/s
Design
LED indicators
Product colour
Black
Rack mounting
No
Stackable
No
Logistics data
Harmonized System (HS) code
85176990
Management features
Quality of Service (QoS) support
Switch type
Unmanaged
Network
10G support
No
Auto MDI/MDI-X
Auto-negotiation
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support
MAC address auto-aging supported
MAC address auto-learning supported
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Operational conditions
Heat dissipation
219.87 BTU/h
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Packaging content
AC adapter included
User guide
Packaging data
Package depth
196 mm
Package height
121 mm
Package type
Box
Package weight
800 g
Package width
131 mm
Performance
Fanless
Maximum cable length
100 m
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
5
Power
DC input voltage
48 V
Input current
1.25 A
Power consumption (max)
64.44 W
Power source
DC/PoE
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity
4
Total Power over Ethernet (PoE) budget
56 W
Security
IGMP snooping
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance
Weight & dimensions
Depth
98 mm
Height
25 mm
Width
99.8 mm
