Description

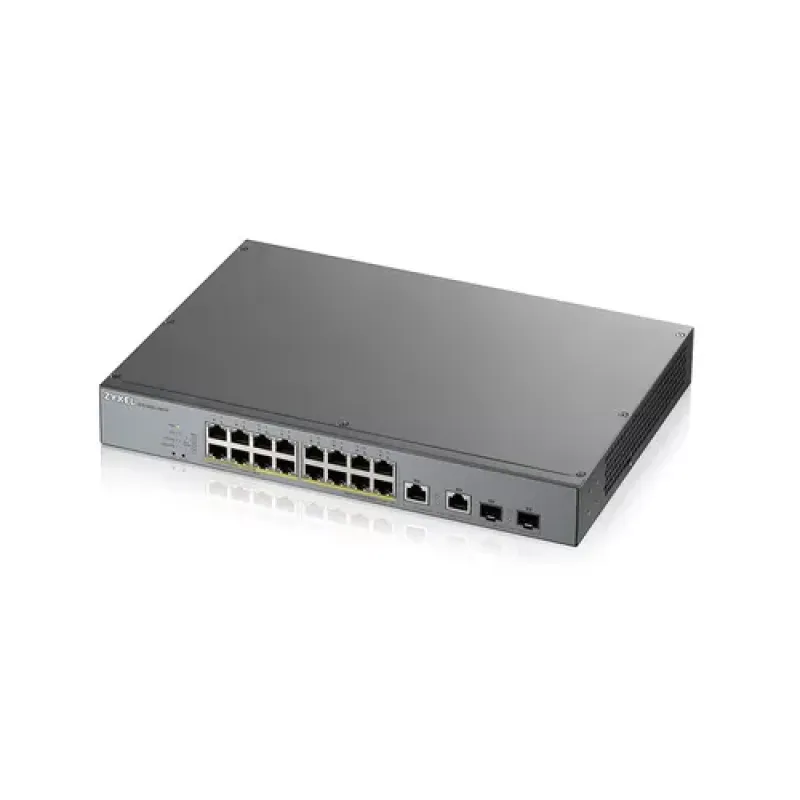

Just For SurveillanceCrafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applications
New outlookCoated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch.
Specialized PoE software features for surveillanceDetect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios.
Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time.
Easy for long-distance deploymentTraditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.

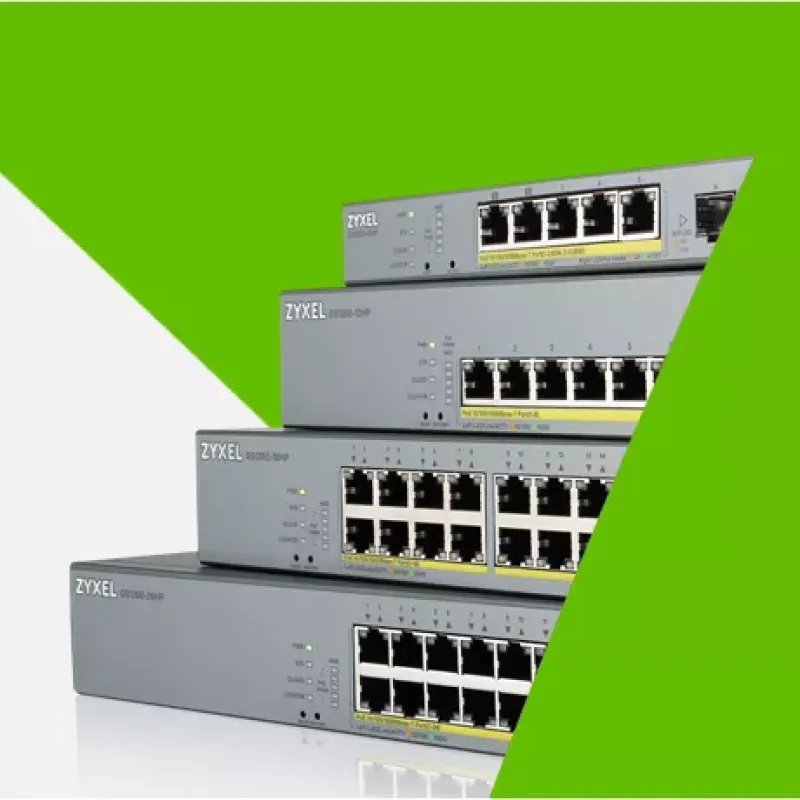

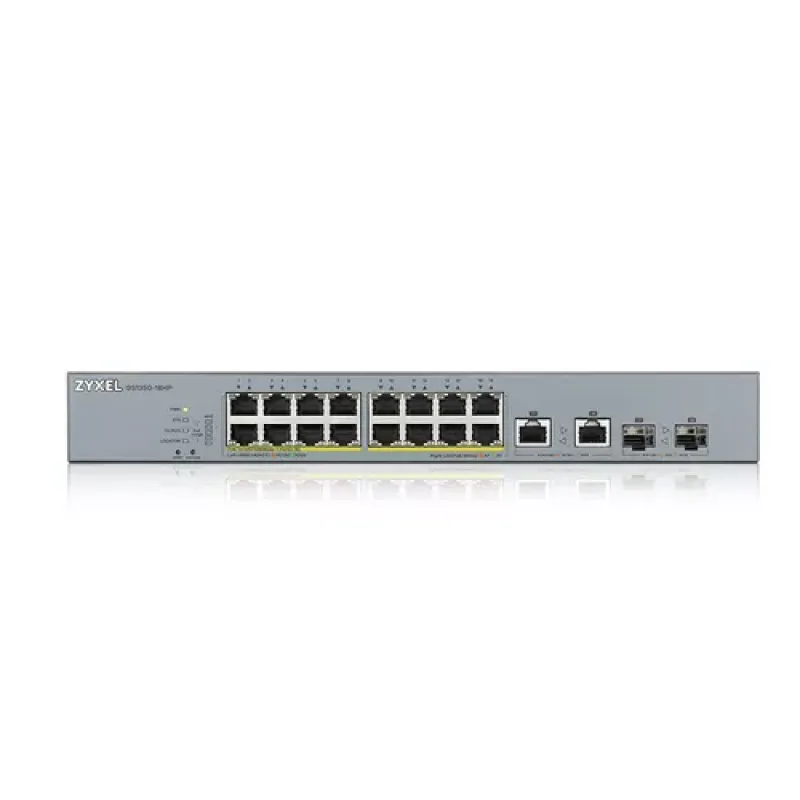

High power budget, intuitive front panel designThe GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations.
Unique hardware, robust designStabilized power
Filters electrical noise and surge to ensure supplying stable power to PoE and the system.
Selected power supply
2X Surge and ESD protection.
Isolated Circuit Design
Provides protection to isolate power surges from Ethernet and power supply.
Intelligent System Monitor
Keeps the system operational from anomalies.
Patented Ethernet Protection
- 4X Surge protection.
- 2X ESD resistant.
Specification
Data transmission
Forwarding rate
26.7 Mpps
MAC address table
8000 entries
Packet buffer memory
0.525 MB
Switching capacity
36 Gbit/s
Design
Electromagnetic compatibility
CE, FCC, C-Tick, A; BSMI CNS13438
LED indicators
Product colour
Grey
Rack mounting
Features
Firmware upgradeable
Logistics data
Harmonized System (HS) code
85176990
Management features
Configuring Location Settings (CLI)
MIB support
RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
Switch layer
L2
Switch type
Managed
System event log
Web-based management
Multicast features
Multicast support
Network
10G support
No
Broadcast storm control
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs
256
Port mirroring
Rate limiting
Security algorithms
SNMP, SNMPv3, SSH, SSL/TLS
Spanning tree protocol
Virtual LAN features
MAC address-based VLAN, Port-based VLAN
VLAN support
Operational conditions
Heat dissipation
1026.07 BTU/h
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-20 - 50 °C
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 70 °C
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Other features
AC input frequency
50 - 60 Hz
Packaging content
Rack mount kit
Packaging data
Cables included
AC
Performance
Mean time between failures (MTBF)
1699692.18 h
Noise level
39 dB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Power
AC input voltage
100 - 240 V
Power consumption (max)
300.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity
16
Total Power over Ethernet (PoE) budget
250 W
Security
DHCP features
DHCP client, DHCP relay, DHCP snooping
IGMP proxy
IGMP snooping
Loop protection
MAC address filtering
Queue scheduling algorithms
SPQ, WFQ, Weighted Round Robin (WRR)
Weight & dimensions
Depth
230 mm
Height
44 mm
Weight
2.42 kg
Width
330 mm
