Description
12-Port 10G SFP+ Unmanaged Multi-Gigabit Switch provides high performance and simplified controls

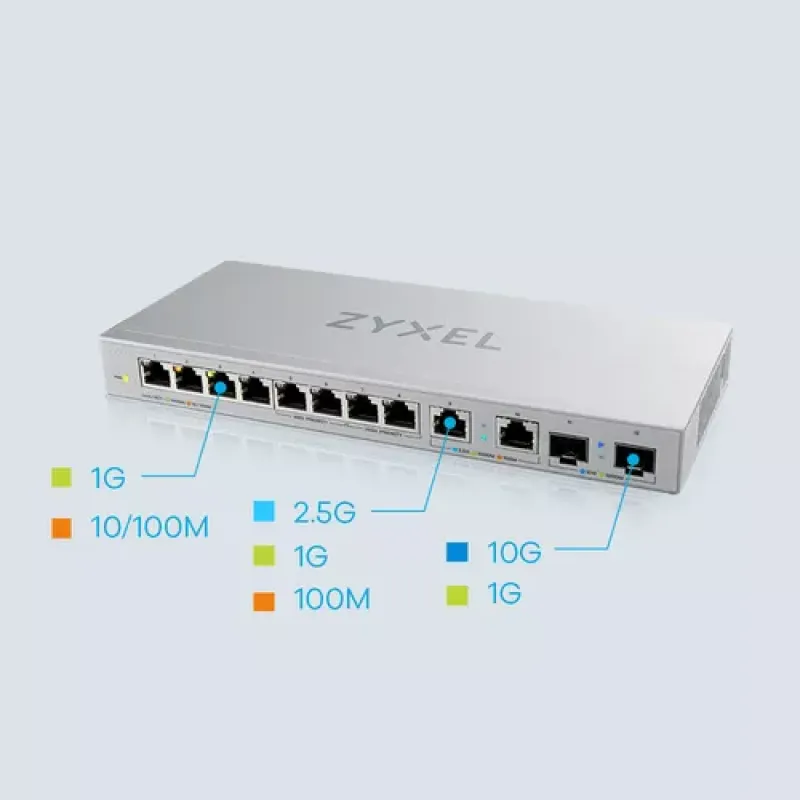

The Zyxel XGS1010-12 comes with two 10G SFP+ uplink ports, two 2.5G Multi-Gigabit ports, and eight Gigabit Ethernet ports with plug-and play design. It has been designed specifically for customers who require an affordable 10GbE network connectivity over a variety of mixed environments from the home to the office.
Maximums the flexibility for your network.
The XGS1010-12 features with 1G ports, 2.5G Multi-Gigabit ports, as well as 10G fiber ports. This port combination is capable of servicing a range of network devices such as gaming pc, NAS, workstation, or WiFi 6 AP.
Experience hyper-fast 2.5G networking!
Equipped with two 2.5G Multi-Gigabit ports, the switch gives your wired connection a boost, with speeds that are 2.5 times faster than standard Gigabit connections. It is the most ideal option to work with new motherboard for speedy file transfers, lag-free gaming, and high-res video streaming.
10G SFP+ Ultra Speed Uplink.
Provide two SFP+ ports compatible with 10GbE, which offers higher transmission speeds, instantly upgrade to a hybrid high-speed network environment at a cost-effective price.
QoS for Better Traffic Control.
The Zyxel XGS1010-12 comes with two high-priority and two medium p-priority ports, which provides enhanced download quality, all while giving you a better surfing, gaming, and streaming experience on other devices.
Easy to Use, No Setup Required.
Its easy plug-and-play design allows you to connect the XGS1010-12 to VoIP, media players, game consoles, set-top box, and any other web browsing devices to your home or studio network without any configuration.
Saving energy and space.
The fanless design ensures noiseless operation. Also, its built-in Energy Efficient Ethernet function automatically adjusts power consumption to dynamically reduce power usage during low link utilization. The wall-mount installation design provides more flexibility for wired home or office networks.
Specification
Data transmission
Forwarding rate
49 Mpps
Jumbo frames
12000
Jumbo frames support
MAC address table
16000 entries
Packet buffer memory
1.5 MB
Switching capacity
66 Gbit/s
Design
LED indicators
Product colour
Grey
Rack mounting
No
Reset button
Logistics data
Harmonized System (HS) code
85176990
Management features
Quality of Service (QoS) support
Switch type
Unmanaged
Network
Auto MDI/MDI-X
Ethernet LAN data rates
10,100,1000 Mbit/s
Flow control support
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Packaging data
Package depth
225 mm
Package height
64 mm
Package weight
1.22 kg
Package width
306 mm
Ports & interfaces
2.5G Ethernet (copper) ports quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
2
Power
AC input voltage
100 - 240 V
DC input voltage
12 V
Input current
1.5 A
Power consumption (max)
15.61 W
Power source
AC/DC
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Security
Access Control List (ACL)
Weight & dimensions
Depth
104 mm
Height
24 mm
Weight
768 g
Width
250 mm
