Description

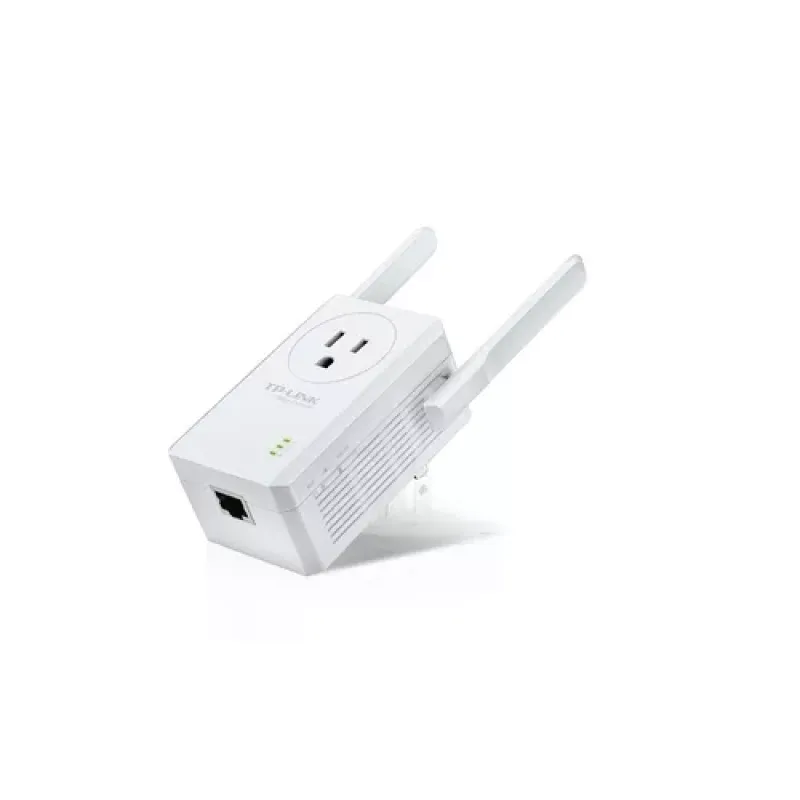

One Button Super Wi-Fi Range ExtensionThe TL-WA860RE wall-mounted is designed to conveniently extend the coverage and improve the signal strength of your wireless network. With 300Mbps wireless N speeds, TL-WA860RE turns your ‘dead zones’ into connected zones, helping you keep mobile devices, media players and computers connected to Wi-Fi with a reliable connection.
Flexible Placement & Extra Power SocketThe TL-WA860RE's miniature size and wall-mounted design make it easy to deploy and move flexibly. Once connected with an existing router, you can simply unplug and plug the Range Extender back in anywhere without the need to configure it again. Moreover, its integrated power socket ensures that no power outlet goes to waste.
Plug and PlayJust plug and play. That’s all you need to do to extend your wireless network. With no new wires or cables, within range of their existing wireless network, users can easily extend wireless coverage at a push of the WPS button on their router followed by the Range Extender button on the TL-WA860RE.
Superior Range with External AntennasWith 2 external antennas combined with higher quality antenna technology, you can experience excellent WiFi coverage and reliability no matter where you connect in your home.
Ethernet Bridge
Turn wired devices into wireless oneThe TL-WA860RE's single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray players, gaming consoles, DVRs and Internet TVs. At the same time, the device can also share the wireless network.
Smooth StreamingThe TL-WA860RE provides fast connectivity for lag-free HD/3D video streaming, online gaming and internet calling with 300Mbps wireless N speeds.
Smart Signal IndicatorSmart signal lights show the strength of signal that TL-WA860RE receives from the existing router, which can help to find the best location for optimal WiFi coverage.
300Mbps wireless data rates ideal for bandwidth-intensive tasks 2 external antennas provide excellent WiFi coverage and reliability Integrated power socket making sure that no power outlet is going to waste Ethernet port allows the Extender connect wired devices Easily expand wireless coverage at a push of the Range Extender button Compatible with other 802.11n/g/b products
Specification
Design
LED indicators
Product colour
White
Features
Ethernet LAN
Maximum data transfer rate
300 Mbit/s
Logistics data
Harmonized System (HS) code
85171800
Network
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
Ethernet LAN interface type
Fast Ethernet
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Security algorithms
64-bit WEP, 128-bit WEP, 152-bit WEP, WPA-PSK, WPA2-PSK
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
Wi-Fi
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported
11,54,300 Mbit/s
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Packaging content
Manual
Quick installation guide
Packaging data
Package depth
101.5 mm
Package height
89 mm
Package type
Box
Package weight
250 g
Package width
156.5 mm
Quantity per pack
1 pc(s)
Performance
Built-in power socket
Ports & interfaces
Plug and Play
Power
Power consumption (typical)
3 W
Software
Linux operating systems supported
Windows operating systems supported
Windows 2000, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
System requirements
Mac operating systems supported
Technical details
Compliance certificates
RoHS
Sustainability compliance
Weight & dimensions
Depth
65.8 mm
Height
75.2 mm
Width
110 mm
