Description

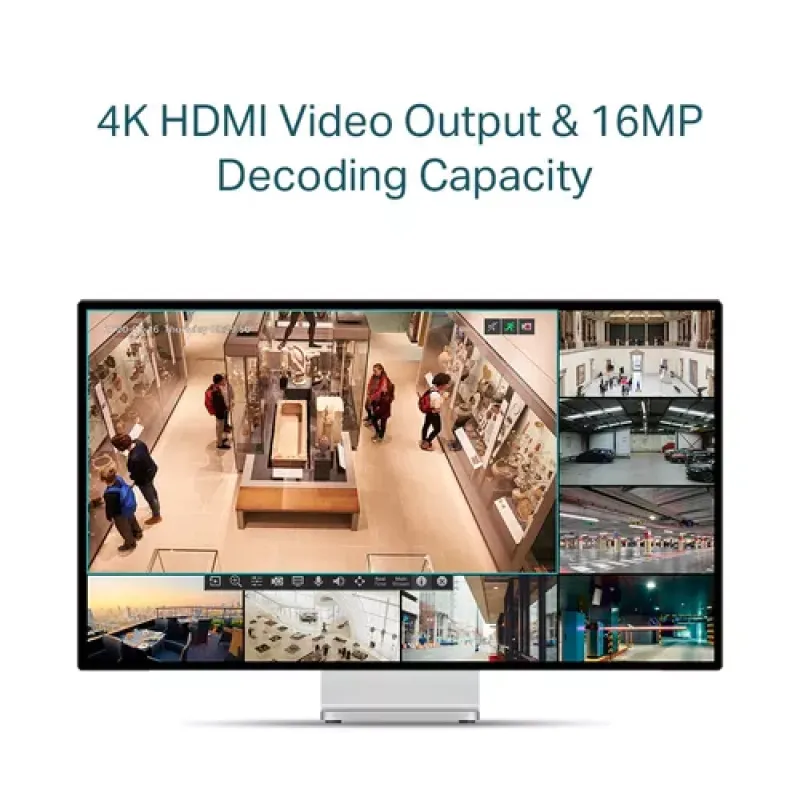

Every angle all on one screen4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.
Dedicated 4 PoE+ ports (53 W budget) for simplified IP camera deployment.
Features 4× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Reviewing footage is faster than ever
4-Channel Simultaneous Playback
Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
More compression. More savings. Same quality
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Specification
Camera
Video recording modes
720p, 1080p
Design
LED indicators
Product colour
White
Rack mounting
No
Display
Built-in display
No
On Screen Display (OSD)
Features
DHCP client
Maximum resolution
3840 x 2160 pixels
Hard drive
HDD interface
SATA
Number of HDDs supported
1
Management features
Syslog
Multimedia
Video formats supported
H.264, H.264+, H.265, H.265+
Network
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN (RJ-45) ports
5
Ethernet LAN data rates
10,100 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Supported network protocols
TCP/IP, DHCP, DNS, NTP, UPnP
Wi-Fi
No
Operational conditions
Operating temperature (T-T)
-10 - 55 °C
Packaging content
AC adapter included
Quick installation guide
Packaging data
Package depth
401.5 mm
Package height
64.5 mm
Package weight
1.37 kg
Package width
251.5 mm
Performance
HDMI output
Input bandwidth
80 Mbit/s
Number of simultaneously playbacked channels
4 channels
Output bandwidth
60 Mbit/s
Supported resolutions
HDMI^ 3840x2160/30Hz,1920x1080/60Hz,
1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,
1024x768/60Hz, 1280x720/60Hz
VGA: 1920x1080/60Hz,1680x1050/60Hz,
1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz,
1280x720/60Hz
USB 2.0 ports quantity
2
Video input channels
4 channels
Ports & interfaces
Audio output
1
HDMI ports quantity
1
Line-in
VGA (D-Sub) output ports
1
Power
Output current
1.31 A
Output voltage
53.5 V
Power consumption (typical)
4.82 W
Redundant power supply (RPS) support
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity
4
Total Power over Ethernet (PoE) budget
53 W
Technical details
Compliance certificates
CE, EAC, Federal Communications Commission (FCC)
Sustainability compliance
WAN connection
Ethernet WAN
Weight & dimensions
Depth
200.3 mm
Height
43 mm
Width
200.3 mm
