Get Your Home Ready for WiFi 6 (802.11ax)The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current WiFi standard. The latest 802.11ax standard provides future-proof technologies, higher network efficiency, faster WiFi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.
*It requires 802.11ax-compatible devices to enjoy the benefits brought by 802.11ax WiFi standard.
Next-Gen WiFi SpeedRT-AX53U is a 2x2 dual-band WiFi router that provides 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band — RT-AX53U is 1.5X faster than 802.11ac 2x2 dual-band routers.
Built for Multi-device HouseholdsWith a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac WiFi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the 802.11ax WiFi standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive WiFi experience.
Better Battery Life for Your DevicesTarget Wake Time (TWT) allows RT-AX53U to schedule designated intervals for devices to transmit data. This allows them to sleep when there is no need to wait for a router signal, reducing power consumption by up to 7X for significantly improved battery life*.
WiFi that Goes FartherWith the latest 802.11ax WiFi standard featuring OFDMA technology, RT-AX53U provides increased WiFi signal range and better coverage by dividing each channel into smaller sub-channels. These sub-channels have a smaller bandwidth that enables them to travel up to 80% farther1, resulting in a better WiFi connection throughout your home*.
Protection for your Home NetworkRT-AX53U incorporates ASUS AiProtection, a commercial-grade network security system powered by Trend Micro™ Smart Home Network. With AiProtection, all connected devices are protected, even if they have no antivirus capability of their own — such as IoT devices. AiProtection blocks common internet-based attacks before they reach the network, and if an infected device is detected on the network, AiProtection instantly blocks it to prevent it sending any personal information to malicious servers.

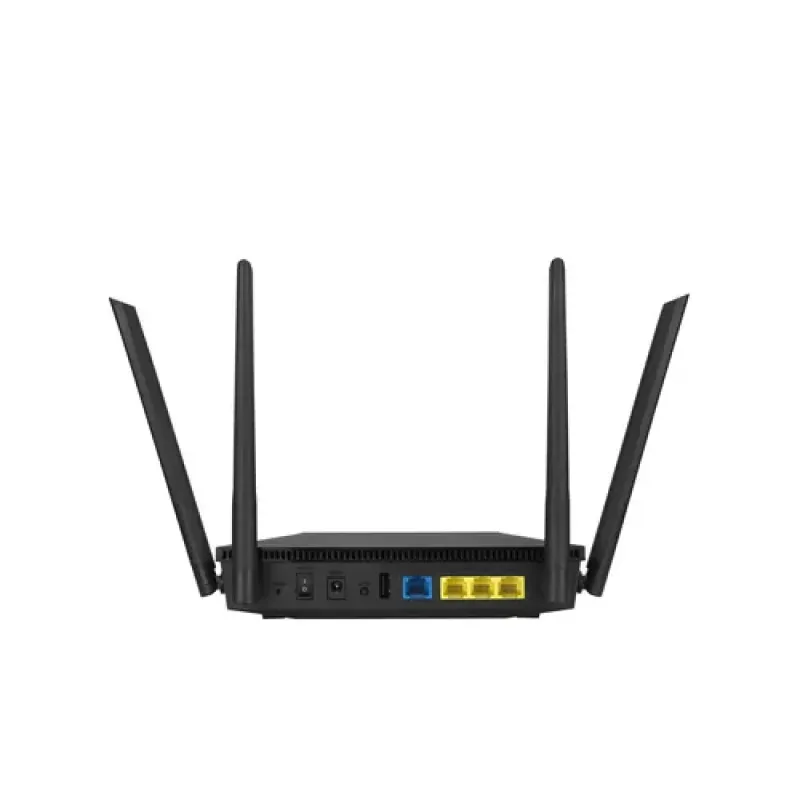

Connectivity OptionsRT-AX53U has one Gigabit WAN port, three Gigabit LAN ports, and USB 2.0 port*. Smart TV, game consoles, NAS storage devices, backup internet and more can now have their own dedicated ports, making RT-AX53U your solid digital home hub.
Robust control and optimization with ASUSWRTWith the ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. With fast setup, multi-device detection, and flexible settings, ASUSWRT makes the most of your network performance.
*xActual data throughput and WiFi coverage will vary from network conditions and environmental factors, including the volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput and wireless coverage.
Specification
Antenna
Antenna gain level (max)
2 dBi
Detachable antenna(s)
Design
Antenna design
External
Indication light
LED indicators
LAN, Power, USB, WAN
On/off switch
Product colour
Black
Reset button
Features
Ethernet LAN
MU-MIMO technology
Logistics data
Harmonized System (HS) code
85176990
Management features
Bandwidth control
Quality of Service (QoS) support
Wireless statistics
WPS push button
Mobile network
3G
4G
5G
No
Network
Cabling technology
10/100/1000Base-T(X)
Dynamic DNS (DDNS)
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN interface type
Gigabit Ethernet
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security algorithms
SSH, WPA, WPA2, WPA2-Enterprise, WPA3
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Other features
AC input frequency
50 - 60 Hz
Antennas quantity
4
Built-in processor
Internal memory
256 MB
Performance
Flash memory
128 MB
Memory card slot(s)
No
Parental control
Power source type
AC, DC
Product type
Tabletop router
USB 2.0 ports quantity
1
Works with Amazon Alexa
Ports & interfaces
USB port
Power
AC input voltage
110 - 240 V
Output current
1.5 A
Output voltage
12 V
Security
DMZ support
Firewall
MAC address filtering
VPN support
VPN Client L2PT
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Fusion
WAN connection
3G/4G USB modem compatibility
DSL WAN
No
Ethernet WAN
SIM card slot
No
WAN connection type
RJ-45
Weight & dimensions
Weight
346 g
Wireless LAN features
Guest access
