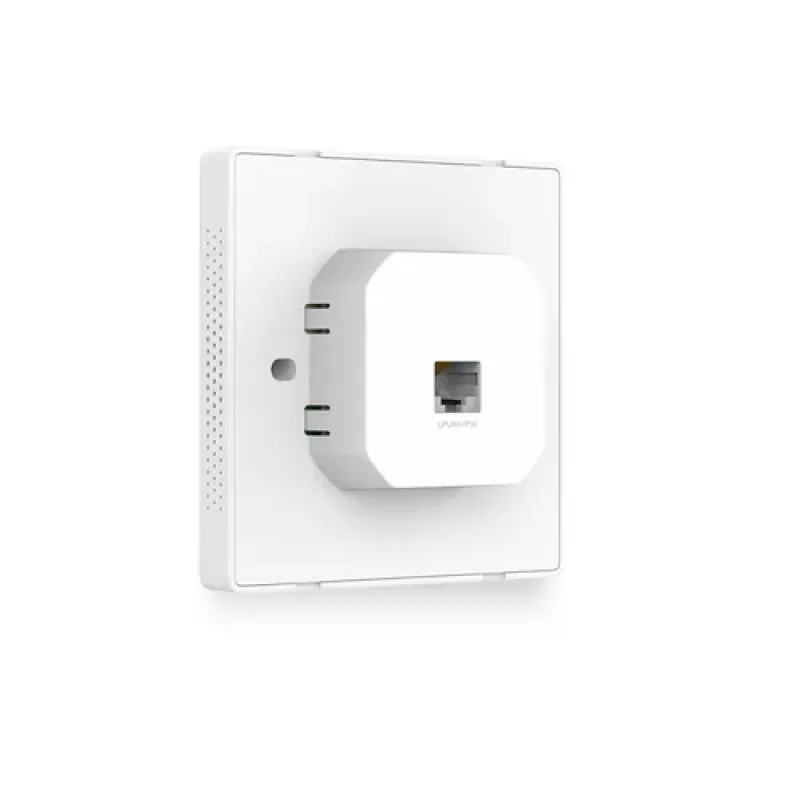

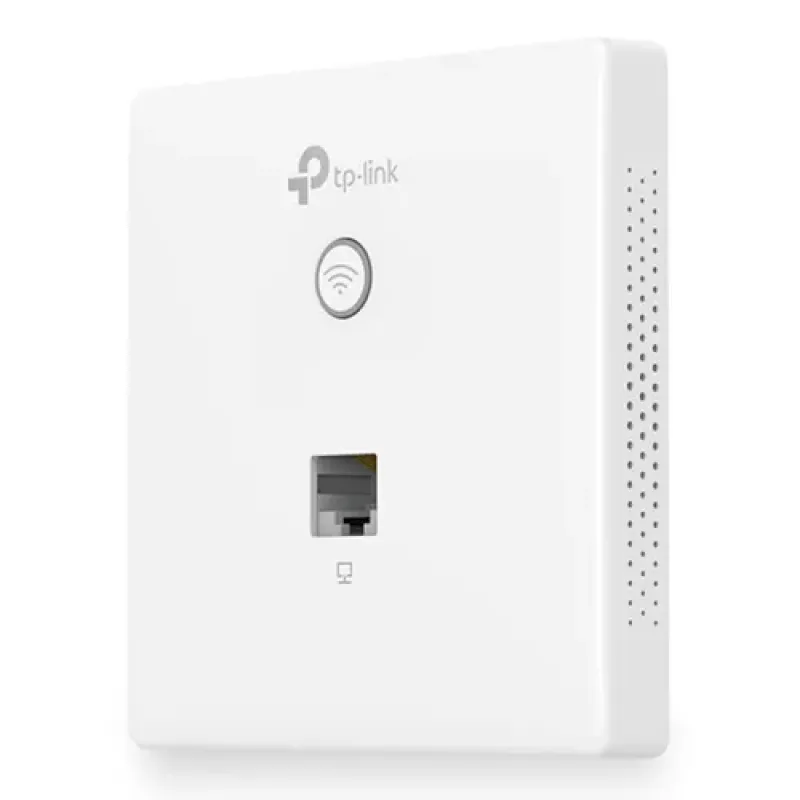

TP-Link Omada EAP115-Wall 300 Mbit/s White Power over Ethernet (PoE)
Brand:
TP-Link
30.99 €
In Stock
Description
Installation Made Easy- Detach the faceplate of the junction box* with a screwdriver.
- Remove the faceplate of the EAP.
- Connect an in-wall Ethernet cable to the Uplink+POE port.
- Secure the access point to the wall using the nails provided.
- Press the faceplate back into position.
Perfectly Formed
The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.
Effortless Deployment
With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.
Complete Wireless Coverage

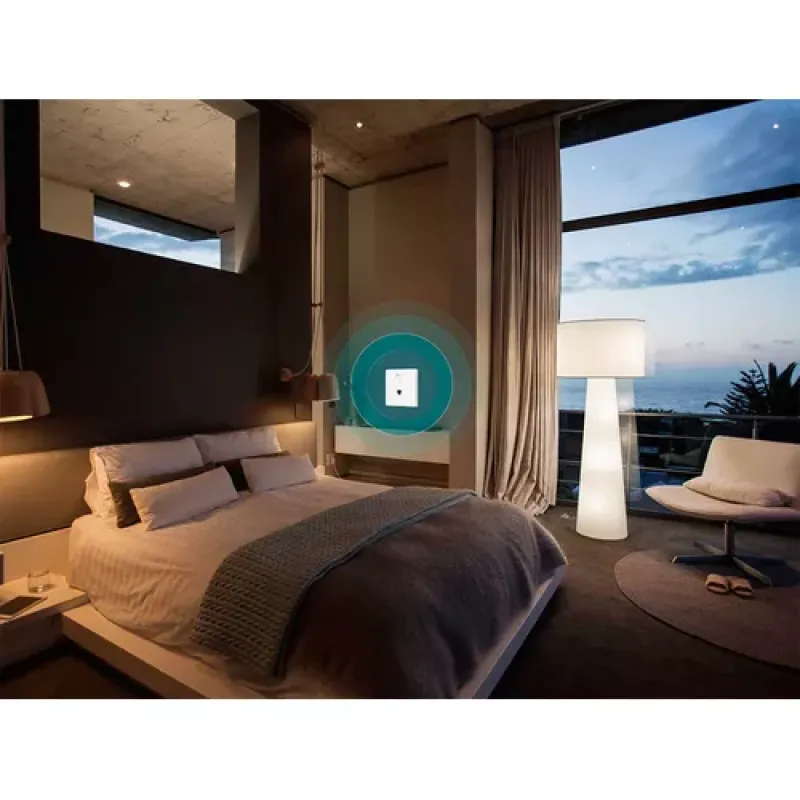

An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specification
Antenna
Antenna direction type
Omni-directional
Antenna features
Integrated antenna
Antenna gain level (max)
1.8 dBi
Audio
Internal
No
Design
Cable lock slot
No
LED indicators
Placement
Wall
Product colour
White
Reset button
Features
2.4 GHz
5 GHz
No
6 GHz
No
Automatic channel selection
Maximum data transfer rate
300 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Transmitting power
15 dBmW
Transmitting power (CE)
20 dBm
Wi-Fi Multimedia (WMM)/(WME)
Wireless isolation
Logistics data
Harmonized System (HS) code
85176990
Management features
Quality of Service (QoS) support
Syslog
Web-based management
Network
Antenna type
Internal
Cabling technology
10/100Base-T(X)
Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
10,100 Mbit/s
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Rate limiting
Security algorithms
802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK
Virtual LAN features
Port-based VLAN, VLAN mapping
VLAN support
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Other features
Antennas quantity
2
Packaging content
Mounting kit
Quick start guide
Packaging data
Package depth
130 mm
Package height
47 mm
Package weight
190 g
Package width
118 mm
Quantity per pack
1 pc(s)
Performance
Compatible operating systems
Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Ports & interfaces
Frequency band
2.4 - 2.4835 GHz
WAN connection
Ethernet (RJ-45)
Power
Power consumption (typical)
2.8 W
Power over Ethernet (PoE) type supported
Passive PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Management protocols
SNMP, Telnet
Security
Access Control List (ACL)
MAC address filtering
Number of SSID supported
8
Service Set Identifier (SSID) features
Multiple SSIDs
Technical details
Compliance certificates
CE, RoHS
Sustainability compliance
Weight & dimensions
Depth
86.8 mm
Height
30.2 mm
Width
86.8 mm
